TECHNOLOGY EVAPORATIVE CONDENSATION

CITROTEC^® EVAPORATIVE CONDENSER

The Citrotec Evaporative Condenser was developed to provide maximum efficiency in vacuum vapor condensation, significantly reducing water and energy consumption while lowering plant operating costs.

Based on high-efficiency thermodynamic principles, the system enables greater energy recovery, increases the net power available for electricity generation, and contributes to more sustainable and reliable operations.

Its application is suitable for equipment requiring vapor condensation, such as evaporators, vacuum pans, and condensing turbines, and can be integrated into both new plants and modernization (retrofit) projects.

Main Advantages

• UP TO 90% REDUCTION IN WATER CONSUMPTION
• ELIMINATES THE NEED FOR FRESH WATER MAKE-UP
• 70% LOWER ELECTRICAL ENERGY CONSUMPTION

Additional Benefits:
• Designed for operation under vacuum conditions;
• Modular design for simplified installation and future expansion;
• Eliminates the need for cooling towers;
• Eliminates the need for surface condensers.

EVAPORATIVE CONDENSER FOR VACUUM PANS

Citrotec^® Evaporative Condensers can be applied in vacuum pan systems, providing efficient vapor condensation under vacuum, increasing operational reliability, and reducing plant operating costs. This technology is ideal for vacuum crystallization systems in sugar production.

• A single condenser can serve multiple vacuum pans.
• Eliminates the need for spray systems.
• Suitable for both continuous and batch vacuum pans.

EVAPORATIVE CONDENSER FOR EVAPORATORS

Citrotec Evaporative Condensers can be applied in evaporation systems to optimize the condensation process and increase overall plant efficiency. The solution is suitable for both new projects and the modernization of existing installations (retrofit).

• A single condenser can serve multiple evaporators.
• Suitable for installation in existing evaporator systems.

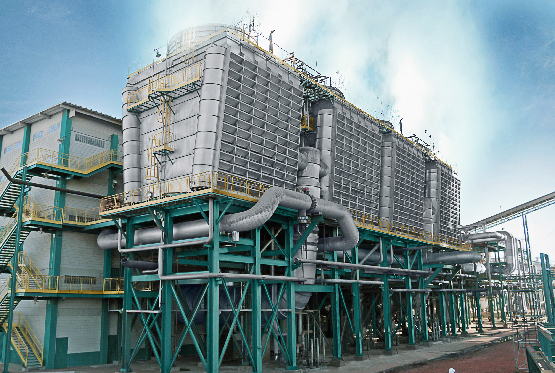

EVAPORATIVE CONDENSER FOR CONDENSING TURBINES

Citrotec Evaporative Condensers can be applied to condensing turbines, providing higher efficiency in exhaust steam condensation and contributing to improved power generation system performance.

• Increases the net power available for electricity generation.
• Eliminates the need for surface condensers and cooling towers.

CASE STUDY: EVAPORATIVE CONDENSER VS. SURFACE CONDENSER AND COOLING TOWERS

Condensing 120 T/H of exhaust steam from a condensing turbine at 0.11 BAR(a).
